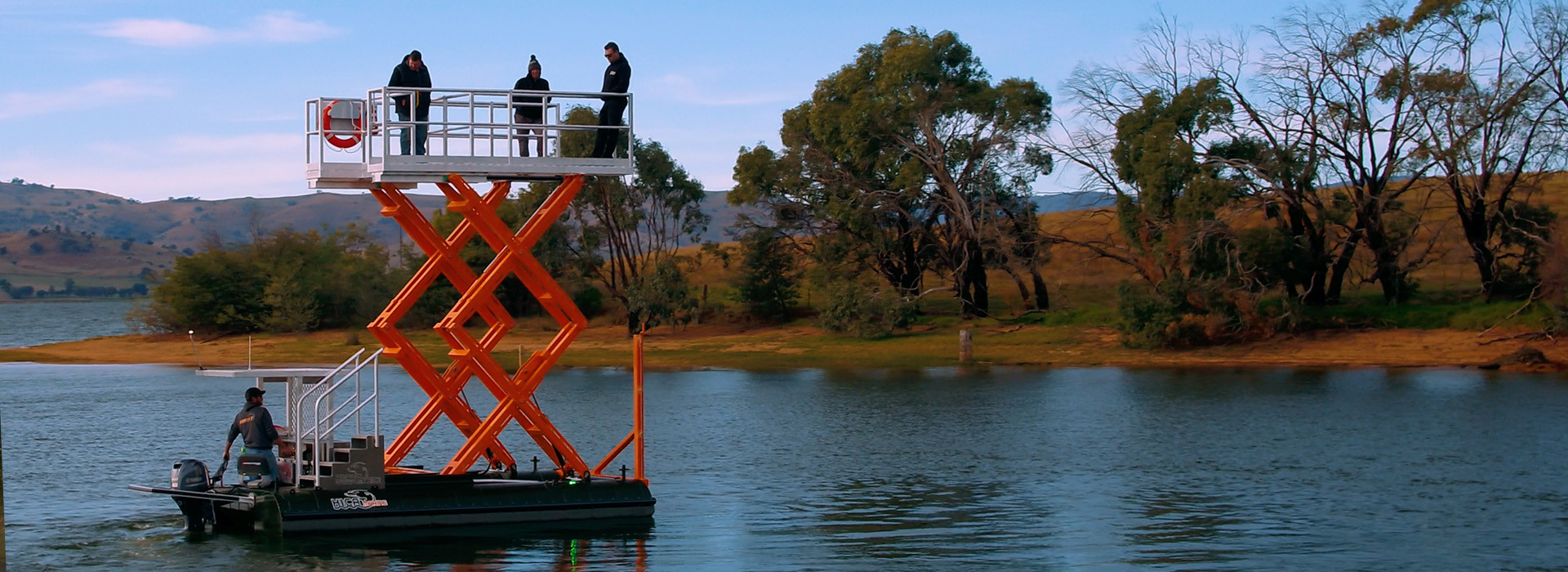

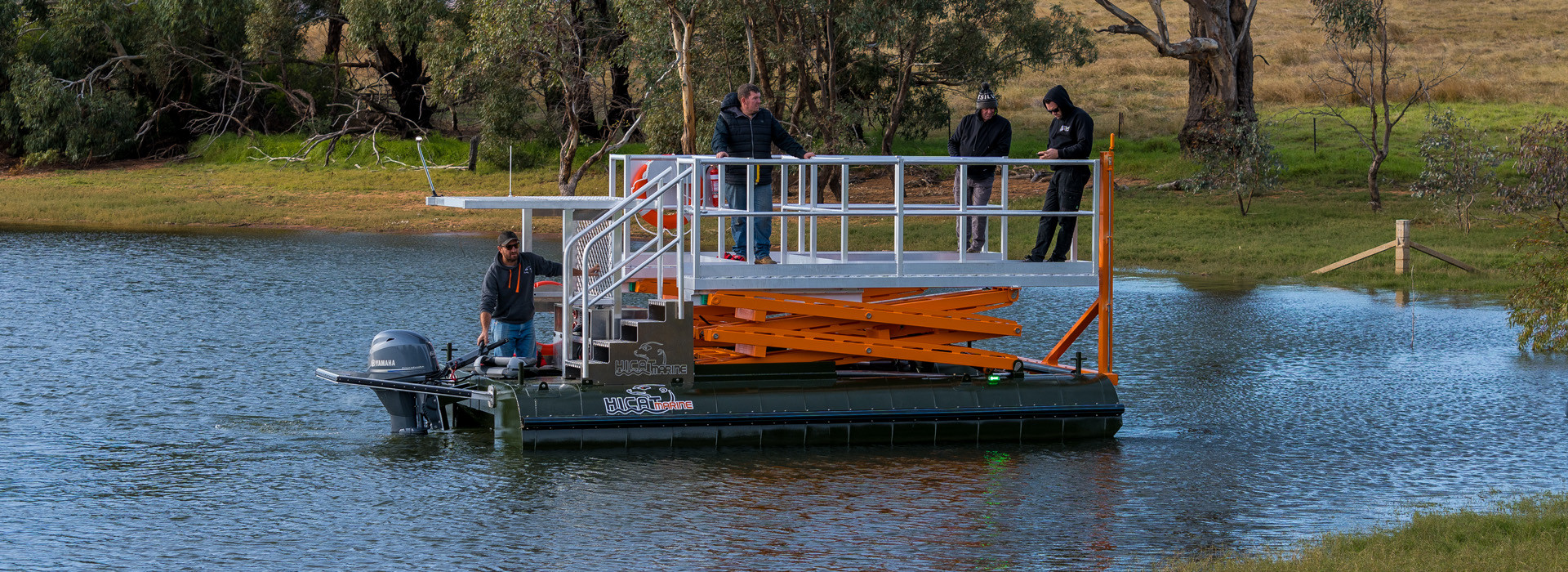

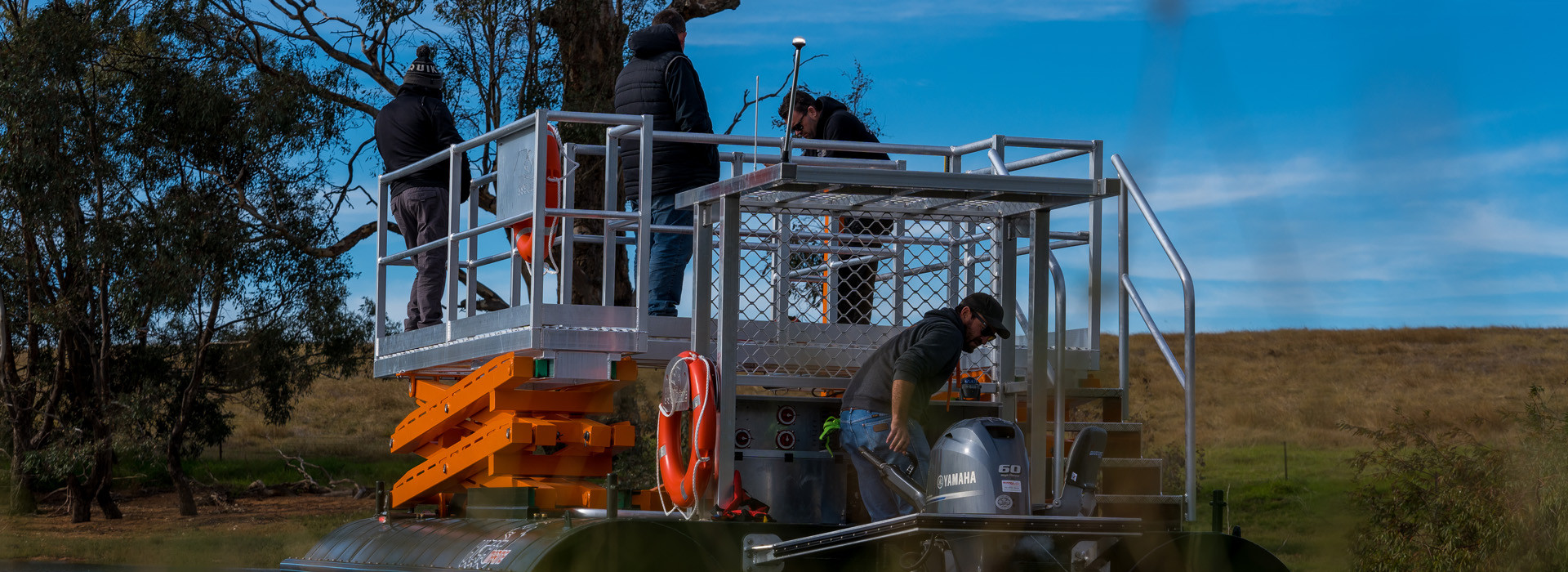

Scissor Barge Vessel - "NOTIFIED" Specifications
Important Key Points
1500mm diameter pile capacity.
6.2mtr working height.
ability to work on 4:1 raked piles.
6.2mtr working height.
ability to work on 4:1 raked piles.
Dimensions
Length - Hull: 5500mm.
LOA 7100mm approx.
Beam: 3900mm.
Lowered overall height: 3285mm.
Weight: 4600kgs.
LOA 7100mm approx.
Beam: 3900mm.
Lowered overall height: 3285mm.
Weight: 4600kgs.
Propulsion
Engine: 60HP High Thrust Tiller steer Outboard Motor (Yamaha).
General
Minimum requirement to operate - Coxwain.
VHF radio.
Depth Sounder.
Pile locking gate operated from platform.
Lifting lugs for crane lift.
2D Survey.
Protective canopy over bridge/ skipper location.
Protective outboard bumper.
VHF radio.
Depth Sounder.
Pile locking gate operated from platform.
Lifting lugs for crane lift.
2D Survey.
Protective canopy over bridge/ skipper location.
Protective outboard bumper.
Hydraulics
12 Volt D/A Solenoid Power Pack.
Emergency backup manual hydraulic pump.
Double acting actuators.
Geared flow divider for symmetrical raising/lowering.
Counter balance valves to each cylinder.
Retractable rear-bottom fender to allow work on 4:1 raked piles.
Two control pendant locations- Platform and Helm.
Emergency backup manual hydraulic pump.
Double acting actuators.
Geared flow divider for symmetrical raising/lowering.
Counter balance valves to each cylinder.
Retractable rear-bottom fender to allow work on 4:1 raked piles.
Two control pendant locations- Platform and Helm.
Performance
Extended platform height (floor) above waterline 5200mm.
Lowered Platform height above waterline: 1416mm.
Platform vertical travel distance: 3780mm.
Platform Capacity: 2 Persons or 250kg.
Maximum Pile capability: 1500mm dia.
Lowered Platform height above waterline: 1416mm.
Platform vertical travel distance: 3780mm.
Platform Capacity: 2 Persons or 250kg.
Maximum Pile capability: 1500mm dia.
